OPC UA Client / OPC UA Server Secure Bridge
(Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 2xEthernet; |
| EtherNet Protocol | OPC UA Client |
| Ethernet protocol | OPC UA Server |
| Data Rates EtherNet | 10/100 Base-T Autosensing |
| Ethernet connector | RJ45 |
| Power supply | 8..24V AC; 12..35V DC |
| Power supply connector | 2way 5mm terminal block |
| Operating temperature | -40° to +85° (-40°F to +185°F) |

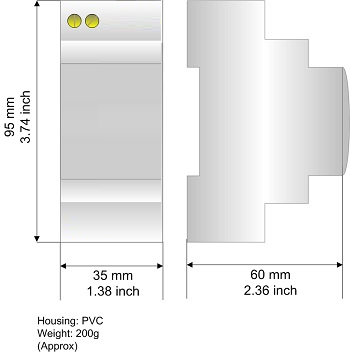

| Dimensions | 30x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | 35mm DIN Rail montage |
| Software | SW67N08 |
| ORDER CODE: | HD67N08-B2 |
