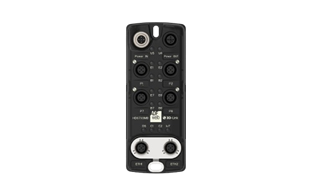

OPC UA Client / OPC UA Server Secure Bridge for Structured Cabling IP67
(M12 Connectors, Color Carbon Black)
Prices and Shipping info
|
|
| General Info: | |
| MODEL: | HD67N08-SCB |
| Daisy chain application | Enter-exit connection for power supply and Ethernet |
| Power Supply Connector type: | M12 (T-coded) |
| Power supply range: | 18..30 V DC |
| Total current capacity on power supply daisy chain: | 12 A |
| Aux Power Supply connector type: | M12 (T-coded) |
| Aux Power Supply range: | 24 V DC |
| Total current capacity on aux power supply daisy chain: | 12 A |
| Ethernet connector type: | M12 (V-coded) |
| Number of Ethernet ports: | 2 |
| Transmission standard: | 100Base-TX |
| Transmission rate: | 10/100 Mbps |
| Protocols for process: | OPC UA Client, OPC UA Server |
| Temperatur: | -40...85°C |
| Protection: | IP67 |
| EMC: | EN 61000-6-2, EN 61000-6-4 |
| Dimensions: | 34mm x 60mm x 151mm |
| Weight: | 300g approx |
| Dimensions: | 34mm x 60mm x 151mm |
| Type of mounting: | Backplane mounting |
| Color: | Carbon Black |
| Software | SW67N08 |
| ORDER CODE: | HD67N08-SCB |
