RS485 / Ethernet - Converter
( Housing type: B )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xEthernet; 1xRS485 |
| Ethernet Connector | RJ45 |
| RS485 Connector | 3way 5mm terminal block |
| Data Rates Ethernet: | 10/100 Base-T Autosensing |
| Data Rates Serial | Up to 115200 bps |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

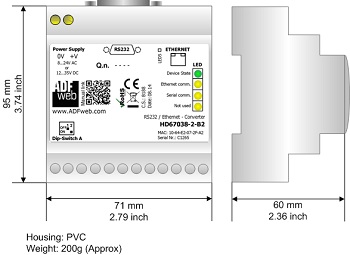

| Dimensions | 71x60x95 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67038 |
| ORDER CODE: | HD67038-5-B2 |
