RS485 / RS422 - Converter
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xRS485; 1xRS422 |
| RS422 Connector | 5way 5mm terminal block |
| RS485 Connector | 3way 5mm terminal block |
| Data Rates Serial | RS232/RS422 Up to 115200 bps |
| Power supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

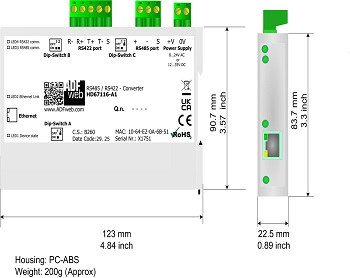

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67116 |
| ORDER CODE: | HD67116-A1 |
