RS232 / RS485 - Converter
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xUSB; 1xRS485; 1xRS232 |
| RS485 Connector | Terminal block |
| RS232 Connector | D-SUB 9 |
| Data Rates Serial | RS232/RS485 Up to 115 Kbps |
| Power supply | 10...19V AC ; 10...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

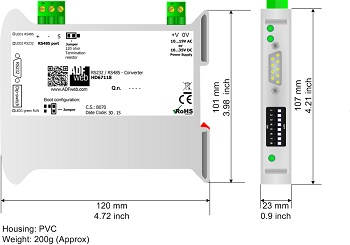

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| ORDER CODE: | HD67118 |
