    CAN Analyser SW
  User manual

  DLL for Customized SW
  DLL User manual


SW67216
+
DL67190
+
HD67216
Eur 234,00

   With  Master DeviceNET

Order nowHardware Advanced



SW67216
+
HD67116
Eur 189,00




Order nowHardware Basic

  Benefits:

CAN Analyzer Advanced 2.0A,
    2.0B (11 and 29 bit identifier)
Galvanic isolation
HW filter for CAN/CANopen
    packet
rail DIN mounting
Master DeviceNet
DLL for customized software

Specifications:
Standard: ISO 11898
Ports: 1 x CAN 2.0
Max Distance: 5.000 m. for 10K bps
25 m for 1M bps
Data Rates: Baud Rate From
10K up to 1M bps.
Isolation: >2000 VDC
LED: 1 x Power indicator
1 x Signal indicator
Power: 24 VDC 200mA
12/18V AC; 50/60 Hz;200mA
Temperature: Operating:
-30° to +70°
(-22°F to +158°F)
Storage:
-40° to 80°
(-40°F to +176°F)
Humidity: Operating:
10% to 80%,
non-condensing
Storage:
5% to 90%,
non-condensing
EMI Compliance: EN 61000-6-2
FCC part 15 of Class A
Dimensions: 120x23x107 (DxWxH)
Weight: 200 g approx
Mechanical Fixing: DIN Rail montage
CAN / CANopen Analyzer Software and Hardware

INCLUDED CAN Analyser Software !
FREE Dll for Customized SW !

Very easy tool for Can/Canopen users.
This CAN Analyzer is one of the most powerful and usually costly software packages on the market and ADFweb.com is ready to guide you through the learning process.

  Ordering Information:

CAN Analyzer Hardaware:
HD67116 CAN analyzer Basic
HD67216 CAN analyzer Advanced

Accessories:
AC34001 Power Supply 220/12V 50/60Hz
AC34002 Power Supply 110/12V 50/60Hz
AC35101 Dongle USB for HD67216
The tool is composed of the following: module hardware with a RS232 interface that connects to a personal computer and the FREE CAN Analyzer software for MSWindows (MS Vista, XP, 2000)
The CAN Analyzer is a powerful, flexible and inexpensive instrument which develops and verifies systems based in CAN-CANopen. This tool allows for the study and configuration of CANopen systems, using a user interface that permits a simple access to devices and their objects. This instrument is indispensable for the analysis of systems in the field of automated and automotive industries.

CAN analyzer software

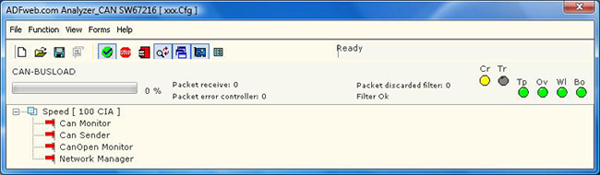

By the main window of CAN analyzer you can be approached to the varius functions. You can selected the type of CAN bus, standard or extended, and set the baud rate of the net. You can monitoread the net by CAN bus load, and have some LEDs for status indicates. By this windows it is possible access to a varius forms, CANopen monitor, CAN monitor, Network manager and CANsender.

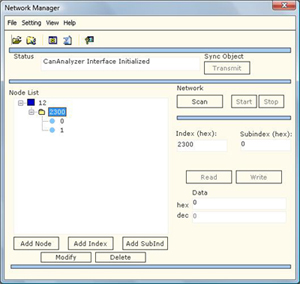

Network Manager

This form permits to scan all nodes or a single node, or permits to scan for available nodes. By this form is possible:
  • Read and write CAN register;
  • Change the state of node ID (pre-operational, operational).

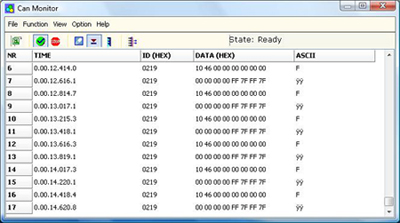

    • CAN Monitor

    This form is available in both types of CAN bus (standard and extended). It visualize all CAN bus frame that pass on the net. It visualize the: COB-ID and the data.

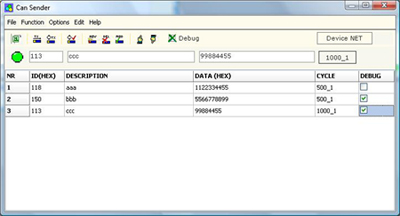

    CAN Sender

    This form is available in both types of CAN bus frame (standard and extended). By this form it is possible send a CAN bus frame. It include:
  • Cyclic transmit function
  • Debug function (for transmit only the CAN bus frame you selected)

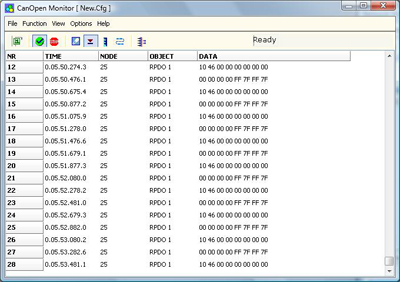

    • CANopen Monitor

    This form is aviable only if the Type of CAN bus is standard. It visualize all CANopen frame that pass in the network. It visualize the: node, type (SDO or PDO), and the data.

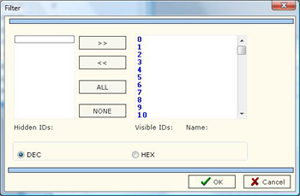

    CANopen Filter

    By this form it is possible filter the varius frame.

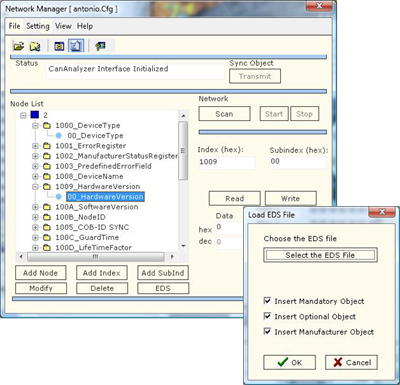

    Load EDS file

    On the network manager window click on the button “EDS”, appears “ Load EDS file” window.
    From this window you CAN load an EDS file for CANopen.
      Ordering Information:

    CAN Analyzer Hardaware:
    HD67116 CAN analyzer Basic
    HD67216 CAN analyzer Advanced

    Accessories:
    AC34001 Power Supply 220/12V 50/60Hz
    AC34002 Power Supply 110/12V 50/60Hz
    AC35101 Dongle USB for HD67216
