Gateways / Bridges

- Ethernet from/to CANopen
- CANopen from/to Modbus TCP (Modbus Ethernet)

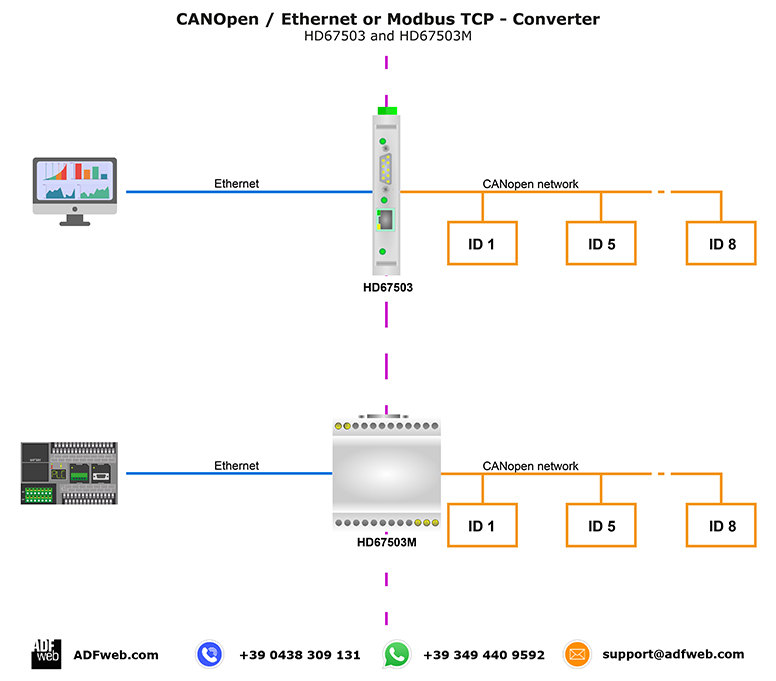

The Gateway HD67503 (or the HD67503M) allows the interface between:
CANopen (Master or Slave) devices and Ethernet devices and vice versa,
through a very simple ethernet frame.
-- Used for example, between PLC, PC or HMI with the Ethernet and the CANopen devices

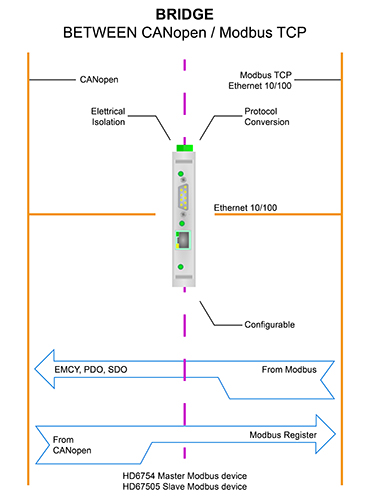

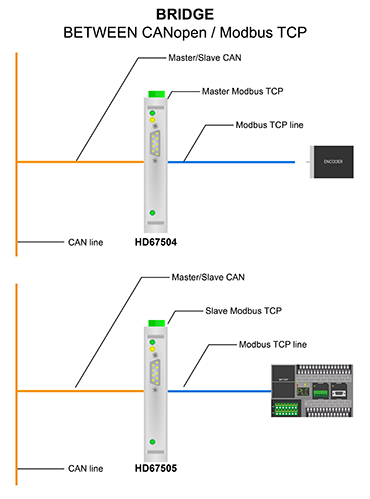

The Gateway HD67004 allows the interface between:
CANopen (Master or Slave) devices and Modbus TCP Slaves devices and vice versa.

The Gateway HD67505 and HD67505M allows the interface between:
CANopen (Master or Slave) devices and Modbus TCP Masters devices and vice versa.


Benefits:

Strong protection from sparks and electrostatic charges
Galvanic isolation
large temperature range
Immediate configuration
Low cost


Order Code Price info Details Description User manual Dim.(DxWxH)mm Operating Temperature
Series CANopen from/to Ethernet

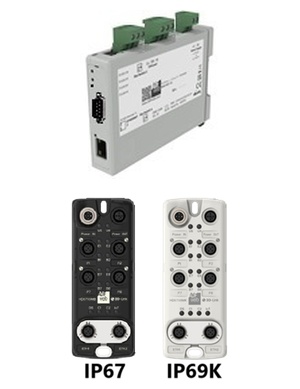

HD67503 View   Gateway CANopen from/to Ethernet (housing type A) 120x23x107 -30° to +70°
HD67503M View   Gateway CANopen from/to Ethernet (housing type B) 71x60x95 -30° to +70°
Series CANopen from/to Modbus
HD67004 View   Gateway CANopen from/to Modbus TCP Master 120x23x107 -30° to +70°
HD67505 View   Gateway CANopen from/to Modbus TCP Server
  (housing type A)		 120x23x107 -30° to +70°
HD67505M View   Gateway CANopen from/to Modbus TCP Server
  (housing type B)		 71x60x95 -30° to +70°



Accessories:
Order Code   Description Details
AC34001   Power Supply 220/12V AC 50/60Hz View
AC34002   Power Supply 110/12V 50/60Hz View
AC34107   Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m View
AC34114   Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m View

Benefits:
Software for easy configurator
Designed for serius use
Very easy to configure
Low cost
Rail din mountable
Galvanic isolation
Industrial temperature range:
  -30° / 70° (-22°F / 158°F)
