Nickname: Adfweb

Gateway / Bridge

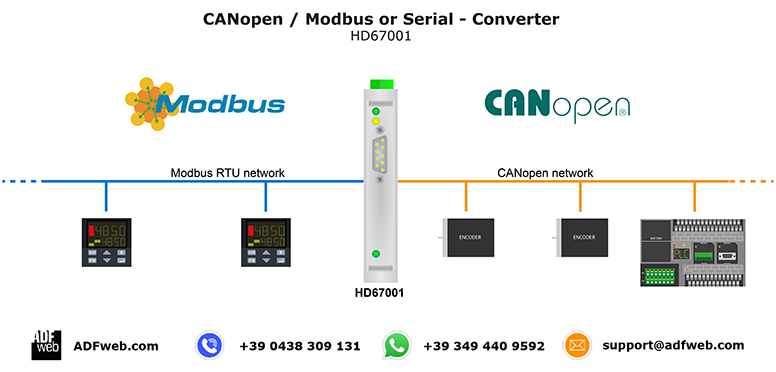

CANopen auf Modbus RTU / Seriell RS232 / RS485

Das Gateway verbindet das CANopen Netzwerk mit einem seriellen RS232 or RS485 Netzwerk.
Es unterstützt das Modbus RTU Protokoll. Die zu wandelten Daten sind frei konfigurierbar.
Um das Gateway zu konfigurieren, können Sie unsere kostenfreie und einfach zu bedienende Software benutzen.

Order Code	Price info	Details	Description	User manual	Dim.(DxWxH)mm	Operating Temperature
Series CANopen from/to Modbus Master
HD67001		View	Gateway CANopen from/to Modbus RTU Master		120x23x107	-30° to +70°
HD67001M12		View	Gateway CANopen from/to Modbus RTU Master M12 connector		120x23x107	-30° to +70°
HD67004		View	Gateway CANopen from/to Modbus TCP Master		120x23x107	-30° to +70°
Series CANopen from/to Modbus Slave
HD67002		View	Gateway CANopen from/to Modbus RTU Slave		120x23x107	-30° to +70°
HD67002M12		View	Gateway CANopen from/to Modbus RTU Slave M12 connector		120x23x107	-30° to +70°
HD67005		View	Gateway CANopen from/to Modbus TCP Slave		120x23x107	-30° to +70°
Series CAN from/to Modbus Master
HD67011		View	Gateway CAN bus from/to Modbus RTU Master		120x23x107	-30° to +70°
HD67514		View	Gateway CAN bus from/to Modbus TCP Master (housing type A)		120x23x107	-30° to +70°
HD67514-B2		View	Gateway CAN bus from/to Modbus TCP Master (housing type B)		71x60x95	-30° to +70°
Series CAN from/to Modbus Slave
HD67012		View	Gateway CAN bus from/to Modbus RTU Slave		120x23x107	-30° to +70°
HD67515		View	Gateway CAN bus from/to Modbus TCP Slave (housing type A)		120x23x107	-30° to +70°
HD67515-B2		View	Gateway CAN bus from/to Modbus TCP Slave (housing type B)		71x60x95	-30° to +70°

Benefits:

RS232/485 Selection

Support Modbus RTU and
generic data mode

Software for easy configurator

Designed for serius use

Very easy to configure

Low cost

Rail din mountable

Wide supply input range

Galvanic isolation

Industrial temperature range:
-30° / 70° (-22°F / 158°F)

Accessories:

Order Code	Description	Details
AC34001	Power Supply 220/12V AC 50/60Hz	View
AC34002	Power Supply 110/12V 50/60Hz	View
AC34107	Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m	View
AC34114	Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m	View
