CAN / Modbus Slave - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN2.0; 1xRS485; 1xRS232 |
| CAN 2.0 connector | Terminal block |
| RS485 connector | Terminal block |
| RS232 connector | D-SUB9 |
| Data Rates CANopen | From 10K to 1Mbps |
| Data Rates Modbus | Up to 115 Kbps |
| Power supply | 10...19V AC ; 10...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

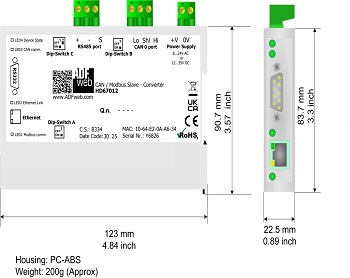

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| ORDER CODE: | HD67012 |
