HD67036M
RS485 / Optic Fibres - Converter
( Daisy chain fiber connection, topology possible: Multi-Drop, Double Loop )
Prices and Shipping info
Specifications:
Ports: 4xST Fibres optic; 1xRS485
Data Rates Serial RS485Up to 115200 bps
Serial RS485 connectorTerminal Block
Fibres Optic connectorST
Optic Fibres cable requirement62.5/125 m 50/125 m
Power supply8...19V AC ; 8...35V DC
Operating temperature-40C/+85C (-40F/+185F)

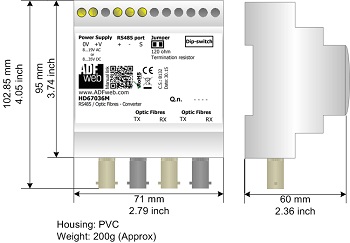

Dimensions71x60x95 (DxWxH)
Weight200g approx
Mechanical fixingDIN Rail montage
ORDER CODE:HD67036M
