CAN / Modbus TCP Slave - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCAN; 1xEthernet |
| CAN 2.0 connector | Terminal block |
| Ethernet connector | RJ45 |
| Data Rates CAN | From 10K to 1Mbps |
| Data Rates Modbus | 10/100 MHz Autosensing |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

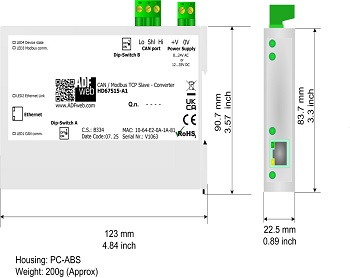

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| Software | SW67514 |
| ORDER CODE: | HD67515-A1 |
