HD67082-B2-868MHz-20
M-Bus Wireless / Modbus RTU Slave - Converter
(M-Bus port: wired + wireless, wM-Bus @ 868 MHz, S1&T1 supported, up to 20 slaves )
Prices and Shipping info
Specifications:
Ports: 1xM-Bus Wireless;; 1xM-Bus; 1xRS485
M-Bus Wireless protocolM-Bus Wireless, S1&T1 communication
M-Bus protocolM-Bus Master
Modbus protocolModbus RTU slave
M-Bus Wireless frequency868 MHz
Data Rate M-Bus Up to 38400 bit/s
Data Rate ModbusUp to 115200 bit/s
M-Bus Wireless connectorSMA Female Antenna
M-Bus connector2way 5mm terminal block
Modbus connector3way 5mm terminal block
Power supply15..21V AC; 18..35V DC
Power supply connector2way 5mm terminal block
Operating temperature-40°C/+85°C (-40°F/+185°F)

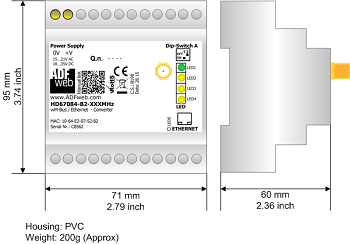

Dimensions71x60x95 (DxWxH)
Weight200g approx
Mechanical fixingDIN Rail montage
SoftwareSW67082
ORDER CODE:HD67082-B2-868MHz-20
