CANopen / Modbus Slave - Converter
( High capability converter: 64 RPDO, 32 TPDO )
( Housing type: A,Termina Blocks Connectors )
Prices and Shipping info
|
|
| Specifications: | |
| Ports: | 1xCANopen; 1xRS485; 1xRS232 |
| Data Rates CANopen | Up to 1Mbps |
| Data Rates Modbus | Up to 115200 bps |
| CANopen Connector | Terminal block |
| RS485 Connector | Terminal block |
| RS232 Connector | D-SUB9 |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

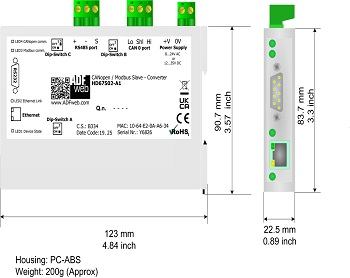

| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67502 |
| ORDER CODE: | HD67502 |
