HD67D39-B2-868MHz
LoRaWAN / S7comm Client - Converter
( LoRaWAN @ 868 MHz, Housing type: B, Terminal Blocks Connectors )
Prices and Shipping info
Specifications:
Ports: 1xAntenna; 1xEthernet;
Ethernet protocolS7comm Client
Antenna protocolLoRaWAN 868MHz
Data rates S7comm100 Base-T Autosensing
Data rates LoRaWANprogrammable
S7comm ConnectorRJ45
LoRaWAN ConnectorSMA Female Antenna
Power Supply Connector2way 5mm terminal block
Power Supply 15..21V AC ; 18..35V DC
Operating temperature-40°C/+85°C (-40°F/+185°F)

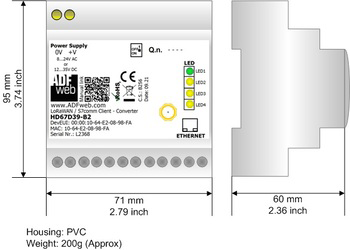

Dimensions71x60x95 (LxWxH)
Weight200g approx
Mechanical fixingDIN Rail montage
SOFTWARE:SW67D39
ORDER CODE:HD67D39-B2-868MHz
