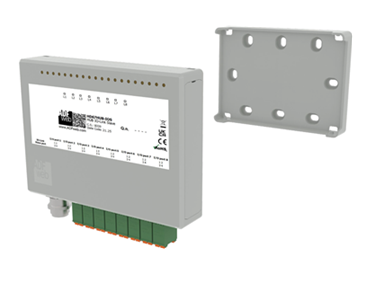

IO-Link - HUB with 8AI 8DI
( Housing type: A, Terminal Blocks Connectors, Analog Input x8,Digital Input x8, Wall Mounting )
Prices and Shipping info
|
|
| General Info: | |
| MODEL: | HD67M01-A1-8AI-8DI-WM |
| Daisy chain application | Enter-exit connection for power supply and Ethernet |
| Electrical data for IO-Link connector | |
| Connector type: | M12 (A-coded) |
| Power supply range: | 18..30 V DC |
| Electrical data for Power Supply output (for I/O channels) | |
| Connector type: | Fast Terminal Block |
| Voltage: | 24 V DC |
| Electrical data for Analog Input | |
| Connector type: | Fast Terminal Block |
| Number of signals: | 8 |
| Type of signal: | -10..10 V / 0..10 V / 0..20 mA (configurable) |
| Accuracy for -10..10 V and 0..10 V: | <6 mV |
| Resolution for -10..10 V and 0..10 V: | 16 bit |
| Accuracy for 0..20 mA: | <20 uA |
| Resolution for 0..20 mA: | 14 bit |
| Electrical data for Digital Input | |
| Connector type: | Fast Terminal Block |
| Number of signals: | 8 |
| Type of signal: | Mode A: 5 V Mode B: 10 V Mode C: 24 V Mode D: Dry Contact |
| IO-Link Slave interface | |
| IO-Link Class: | A |
| IO-Link Data Rate: | COM1, COM2, COM3 |
| IO-Link version: | 1.1 |
| Operating conditions | |
| Temperature: | -40...85° C |
| Protection: | IP54 |
| Test and approvals | |
| EMC: | EN 61000-6-2, EN 61000-6-4 |
| Mechanical data | |
| Dimensions: | 117 x 84 x 23 |
| Weight: | 200g approx |
| Type of mounting: | Wall Mounting |
| Software | SW67M01 Via IODD File |
| ORDER CODE: | HD67M01-A1-8AI-8DI-WM |
