Energy Meter / BACnet MS/TP
(333 mV current transformers (CTs) / Rogowski coils)
 Prices and Shipping info |

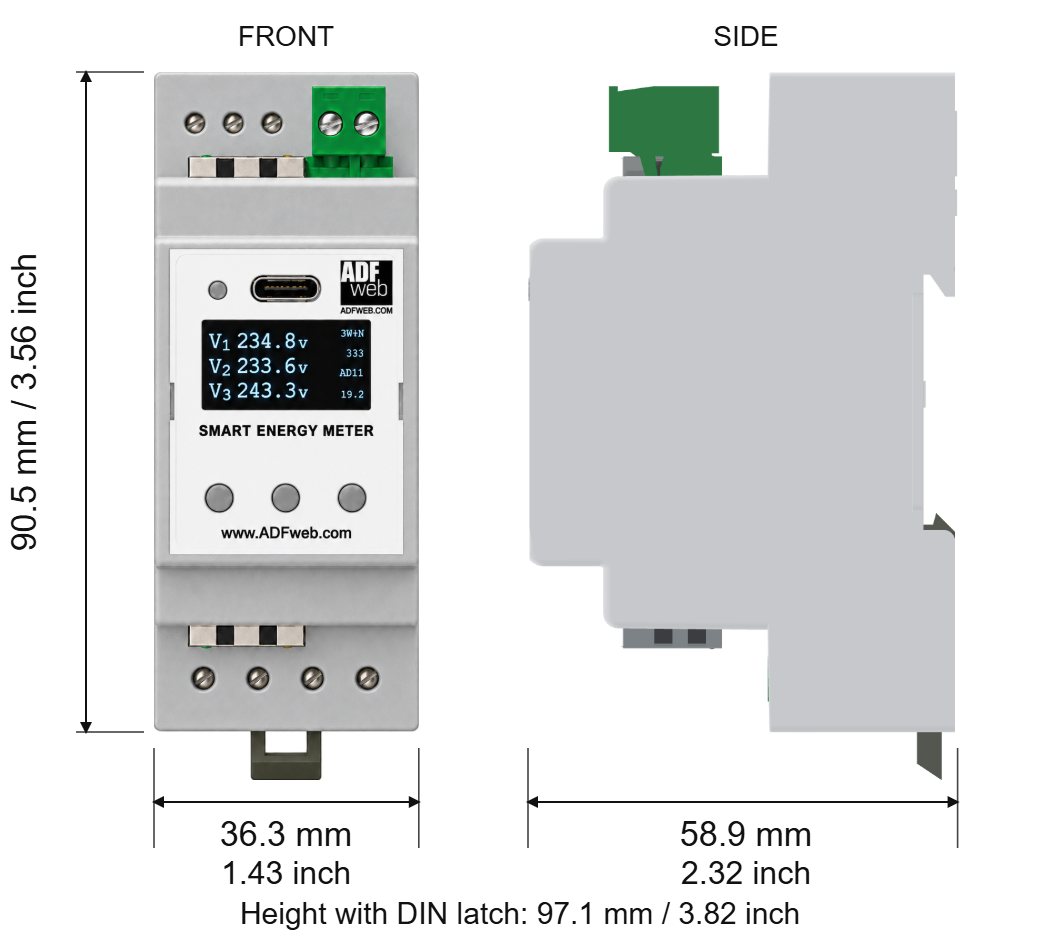

 Dimensions |
| Specifications: | |
| Product | Energy Meter |
| Measured quantities | Voltage, current, frequency, active / reactive / apparent power, power factor and energy |
| Voltage measurement range | 30–300 V phase-to-neutral (L-N) 50–500 V phase-to-phase (L-L) |
| Current input | 333 mV current transformers (CTs) / Rogowski coils |
| Input measurement range | 0.5–500 mV |
| Frequency measurement range | 45–65 Hz |
| Active energy accuracy | Class 0.5S IEC 61557-12 / IEC 62053-22 |
| Communication protocol | BACnet MS/TP Slave |
| System connection | BACnet MS/TP Master |
| Ports | 1 RS485 port + 1 LAN port for configuration |
| Power supply | 12–28 V AC / 11.5–36 V DC |
| Power consumption | < 3 W |
| Display | OLED |
| Data logging | Measurement data logging via the front-panel USB-C port |
| Mounting | 2 DIN modules; 35 mm DIN rail |
| Degree of protection | IP22 |
| LAN function | Configuration only |
| Operating temperature | -40°C to +85°C |
| User manual | MN67P01-BMS_ENG |
| Documentation | Box Sheet and configuration files |
| ORDER CODE: | HD67P01-MV-BMS |
