CANopen / Modbus Slave - Converter
( Housing type: A, Terminal Blocks Connectors )
Prices and Shipping info for HD67002
Prices and Shipping info for HD67502
|
|
|
NOTE For new design: use the HD67502-A1 instead of HD67002 For old design: you can use indifferently the HD67002 or the HD67502-A1 | |
|
HD67002 | |
| Specifications: | |
| Ports: | 1xCANopen; 1xRS485; 1xRS232 |
| CAN 2.0 connector | Terminal block |
| RS485 connector | Terminal block |
| RS232 connector | D-SUB9 |
| Data Rates CANopen | From 10K to 1Mbps |
| Data Rates Modbus | Up to 115 Kbps |
| Power supply | 10...19V AC ; 10...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |

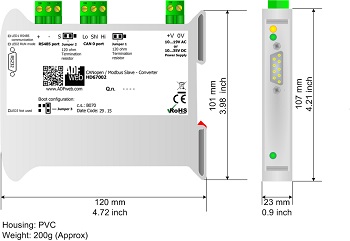

| Dimensions | 120x23x107 mm(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail mountage |
| ORDER CODE: | HD67002 |
|
HD67502 | |
| Specifications: | |
| Ports: | 1xCANopen; 1xRS485; 1xRS232 |
| Data Rates CANopen | Up to 1000 bps |
| Data Rates Modbus | Up to 115200 bps |
| CANopen Connector | Terminal block |
| RS485 Connector | Terminal block |
| RS232 Connector | D-SUB9 |
| Power supply | 8...19V AC ; 8...35V DC |
| Operating temperature | -40°C/+85°C (-40°F/+185°F) |
| Dimensions | 120x23x107(DxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| Software | SW67502 |
| ORDER CODE: | HD67502 |
