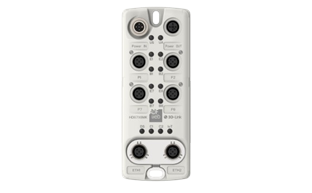

IO-Link Master / EtherCAT Slave for Structured Cabling IP69K - Converter
( IIoT port MQTT, OPC UA, M12 Connectors, 4 Programmable ports IO-Link, Color Light Grey )
Prices and Shipping info
|
|
| General Info: | |
| MODEL: | HD67X4EK |
| Daisy chain application | Enter-exit connection for power supply and Ethernet |
| Electrical data for Power Supply (US) | |
| Connector type: | M12 (T-coded) |
| Power supply range: | 18..30 V DC |
| Total current capacity on power supply daisy chain: | 12 A |
| Current capacity on single IO-Link port: | 250 mA (by IO-Link standard) |
| Electrical data for Aux Power Supply (UA) | |
| Connector type: | M12 (T-coded) |
| Power supply range: | 24 V DC |
| Total current capacity on power supply daisy chain: | 12 A |
| Total current capacity on IO-Link ports: | 6 A |
| Current capacity on single IO-Link port (Inrush): | 2,2 A |
| Current capacity on single IO-Link port (nominal): | 1,6 A |
| Ethernet interface | |
| Connector type: | M12 (T-coded) |
| Number of Ethernet ports: | 2 |
| Transmission standard: | 100Base-TX |
| Transmission rate: | 10/100 Mbps |
| Protocols for process: | EtherCAT Slave (IN & OUT) (configurable) |
| Protocols for IoT: | MQTT, OPC UA Client, OPC UA Server (configurable) |
| O-Link Master interface | |
| Connector type: | M12 (T-coded) |
| Total number of IO-Link ports: | 4 |
| Number of IO-Link ports (Class A): | configurable |
| Number of IO-Link ports (Class B): | configurable |
| Transmission type: | COM1, COM2, COM3 |
| IO-Link version: | 1.1 |
| Input/Output | |
| Max number of Digital Input: | 8 |
| Max number of Digital ouput: | 4 |
| Operating conditions | |
| Temperature: | -40...85° C |
| Protection: | IP69K |
| Test and approvals | |
| EMC: | EN 61000-6-2, EN 61000-6-4 |
| Mechanical data | |
| Dimensions: | 34 x 60 x 205 |
| Weight: | 300g approx |
| Type of mounting: | Backplane mounting |
| Color: | Light Grey |
| Software | SW67X |
| ORDER CODE: | HD67X4EK |
