HD671-/17/80/81/82-/F/FS
User Manual
HD67221-/F/FS
User Manual
Aggiungi ai preferiti Bookmark this page
Prices and
Shipping info

Similar Products:
HD67117 Repeater for CAN 2.0A
HD67180 Repeater for DeviceNET
HD67181 Repeater for CAN 2.0B
HD67221 Copper/Copper Bridge
HD67182 Repeater for J1939

Ordering Information:

CAN Bus to Fiber:
Repeater for CANopen , CAN 2.0A HD67117F
HD67117FS
Repeater for DeviceNet HD67180F
HD67180FS
Repeater for CAN 2.0B HD67181F
HD67181FS
Repeater for J1939 HD67182F
HD67182FS
Bridge Repeater CAN Bus 2.0A 2.0B HD67221F
HD67221FS
Accessories:
Power Supply 220/12V 50/60Hz AC34001
Power Supply 110/12V 50/60Hz AC34002
Patch Cable Optic Fibers ST/ST 2 Mts AC34021
Patch Cable Optic Fibers ST/ST 10 Mts AC34022









Specifications:
Standard: ISO 11898 / ISO.IEC 11801
CAN Signals: CANL, CANH, GND
Ports: 1 x CAN 2.0
2 x ST 820 uM1 x RS232 (HD67221F/FS only)

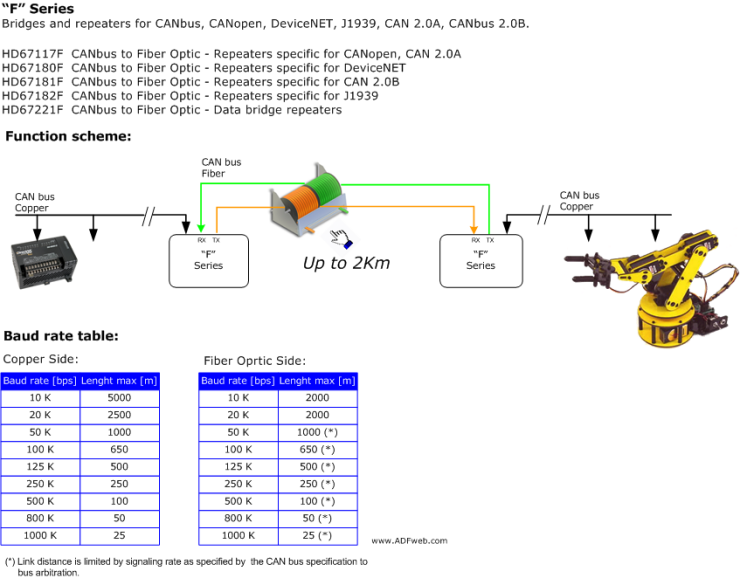

Max Distance: Optical link:
Up 2000 meters (1Mbps)
Copper link:
5.000 m. for 10K bps25 m for 1M bps
Data Rates: Baud Rate From 10K up to 1M bps
Isolation: >2000 VDC
DIP Switch: Different Baud Rate Setting
LED: 1 x Power indicator
2 x Signal indicator
Power: 24 VDC 200mA
12/18V AC; 50/60 Hz;200mA
Temperature: Operating: -30°C to +70°C (-22°F +158°F)
Storage: -40°C to 80°C (-40°F to 176°F)
Humidity: Operating:10% to 80%, non-condensing
Storage: 5% to 90%, non-condensing
EMI Compliance: EN 61000-6-2
FCC part 15 of Class A
Dimensions: 120x23x107 (DxWxH)
Weight: 200 g approx
Mechanical Fixing: DIN 35 mm Rail montage
Benefits & Main Features:

Naturally Resistant to Surges,
  Spikes and Electrical Noise.

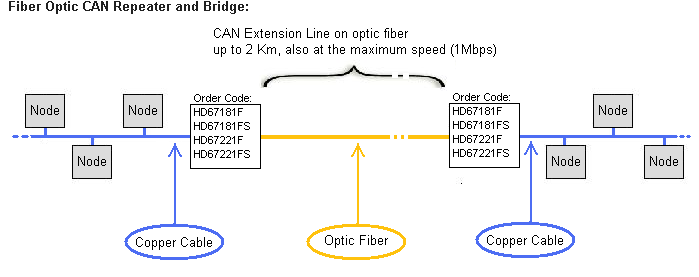

Multi Modal Optic fibre up to 2000 meters
MAX baud rate 1Mb.
Allows extension of a line segment
  (without lowering the Baud Rate).
Extension of nodes number.

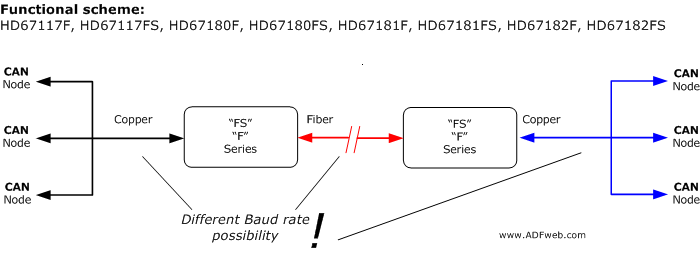

Different baud rate setting

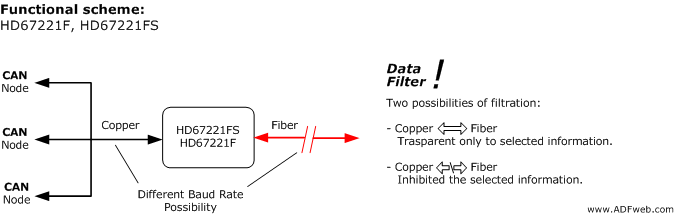

Data Filter (HD67221F, HD67221FS)
CAN Protocol independent.
Microprocessor 16bit.
Rail DIN mounting.
Removable terminal block
Low Cost
