Sample within:
Europe:	One days
U.S.A.:	Two days
Other Countries:	Three days

Nickname: Adfweb

Ethernet / Serial , Converter

The HD67120 creates a RS232/485 port, via an RJ45 connector of the Ethernet LAN.
Also the substitution of a whole RS485 net with Ethernet connection is possible,
like the viceversa.

With the HD67120 is possible create:

Tunnel point to multipoint (typical serial connection with Master and Slaves but through Ethernet).

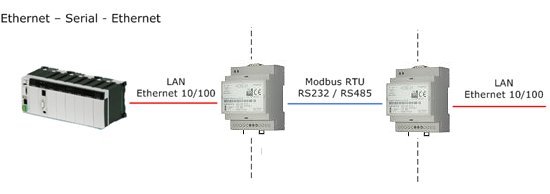

Tunnel point to point (Ethernet bridge for a serial line)
Remote COM port (virtual COM port) on your PC

Order Code	Description	User manual	Dimensions(DxWxH)mm	Operating Temperature	Details	Price info
HD67120	Converter Ethernet from/to serial		71x60x95	-30°C to +70°C	View

Benefits:

RS232/485 Selection

Support Modbus RTU

Support Modbus TCP

Software for easy configurator

Designed for serius use

Very easy to configure

Low cost

Rail din mountable

Wide supply input range

Galvanic isolation

Industrial temperature range:
-30°C / 70°C (-22°F / 158°F)

Accessories:

Order Code	Description	Details
AC34001	Power Supply 220/12V AC 50/60Hz	View
AC34002	Power Supply 110/12V 50/60Hz	View
AC34103	Power Supply 12Vac - European Input 230V AC 50 Hz	View
AC34007	Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.5 m	View
AC34114	Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m	View
