Converter
Modbus TCP (Ethernet) from/to Modbus

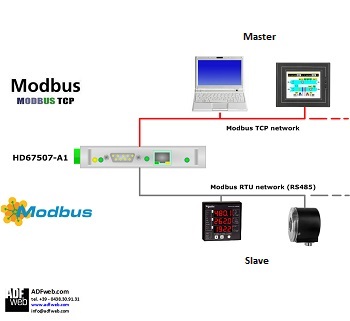

The HD67507 is a "Slave (server)" from the side Ethernet, and is "Master" from the side Rs232/Rs485.

So you can connect:
a "Master (Client)" Modbus TCP with one or more "slaves" Modbus RTU, in order to exchange information between the Modbus TCP master and the Modbus slaves.
It is able to manage up tp 10 simultaneous connections from Ethernet side.
It is available in 2, order codes: the HD67507 and the HD67507M (different for types of housing).

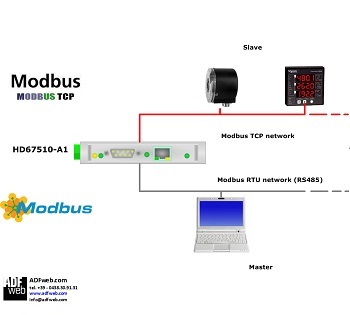

The HD67510 is a "Slave" from the side Rs232/Rs485, and is "Master (client)" from the side Ethernet.

So you can connect:
a "Master" Modbus RTU with one or more "slaves (servers)" Modbus TCP, in order to exchange information between the Modbus master on a serial and the slaves on the Ethernet.
It is available in 2, order codes: the HD67510, and the HD67510M (different for types of housing).

Other products for Modbus:

Modbus RTU (RS485, RS232)

Order Code	Price info	Details	Description	User manual	Dim.(DxWxH)mm	Operating Temperature
HD67507		View	Gateway Modbus TCP Server to Modbus RTU (housing type A)		120x23x107	-30° to +70°
HD67507M		View	Gateway Modbus TCP Server to Modbus RTU (housing type B)		71x60x95	-30° to +70°
HD67510		View	Gateway ModBUS TCP from/to ModBUS RTU (housing type A)		120x23x107	-30° to +70°
HD67510M		View	Gateway ModBUS TCP from/to ModBUS RTU (housing type B)		71x60x95	-30° to +70°

Specifications:
Ports:	1 x Ethernet 10/100 Autosensing;1 x RS485;1 x RS232
Data Rates Modbus TCP	10/100 Mhz autosensing
Data Rates Modbus RTU	up to 115K bps
Max Distance	Modbus TCP: 100 m; Modbus RTU:1200 m for 115K bps
Power supply	12-24VDC; 12/24VAC 50/60Hz
Operating temperatur	-30° to +70° (-22°F to +158°F)
Dimensions	120x23x107 or 71x60x95 (DxWxH)
Weight	200g approx
Mechanical fixing	DIN Rail montage
Software	SW67510

Accessories:

Order Code	Description	Details
AC34001	Power Supply 220/12V AC 50/60Hz	View
AC34002	Power Supply 110/12V 50/60Hz	View
AC34107	Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m	View
AC34114	Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m	View

Benefits:

Software for easy configurator

Designed for serius use

Very easy to configure

Low cost

Rail din mountable

Galvanic isolation

Industrial temperature range:
-30° / 70° (-22°F / 158°F)
