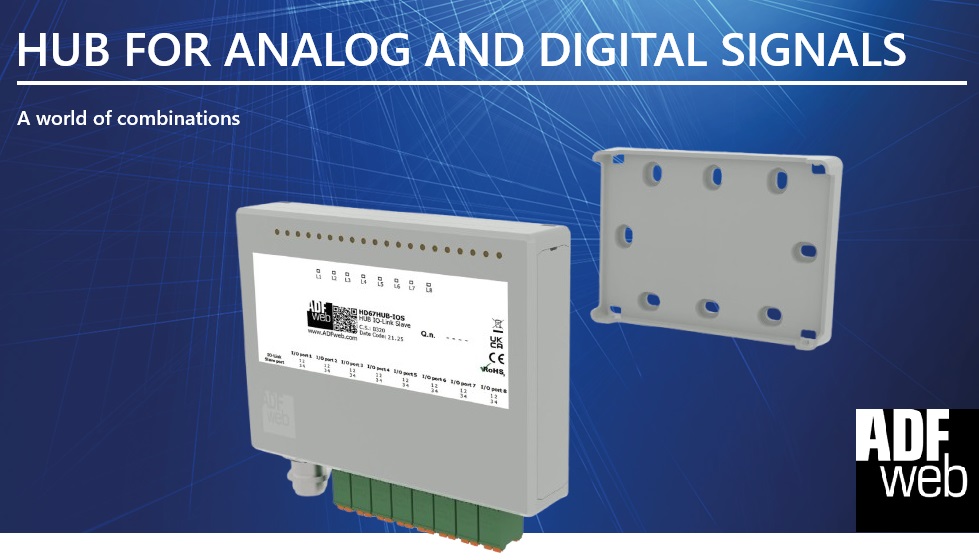

The HUB is a compact and versatile device designed to collect and transmit analog and digital signals to standardized fieldbuses.
It is the ideal solution for centralizing data acquisition from sensors and actuators, simplifying integration with both traditional and next-generation automation systems. ...

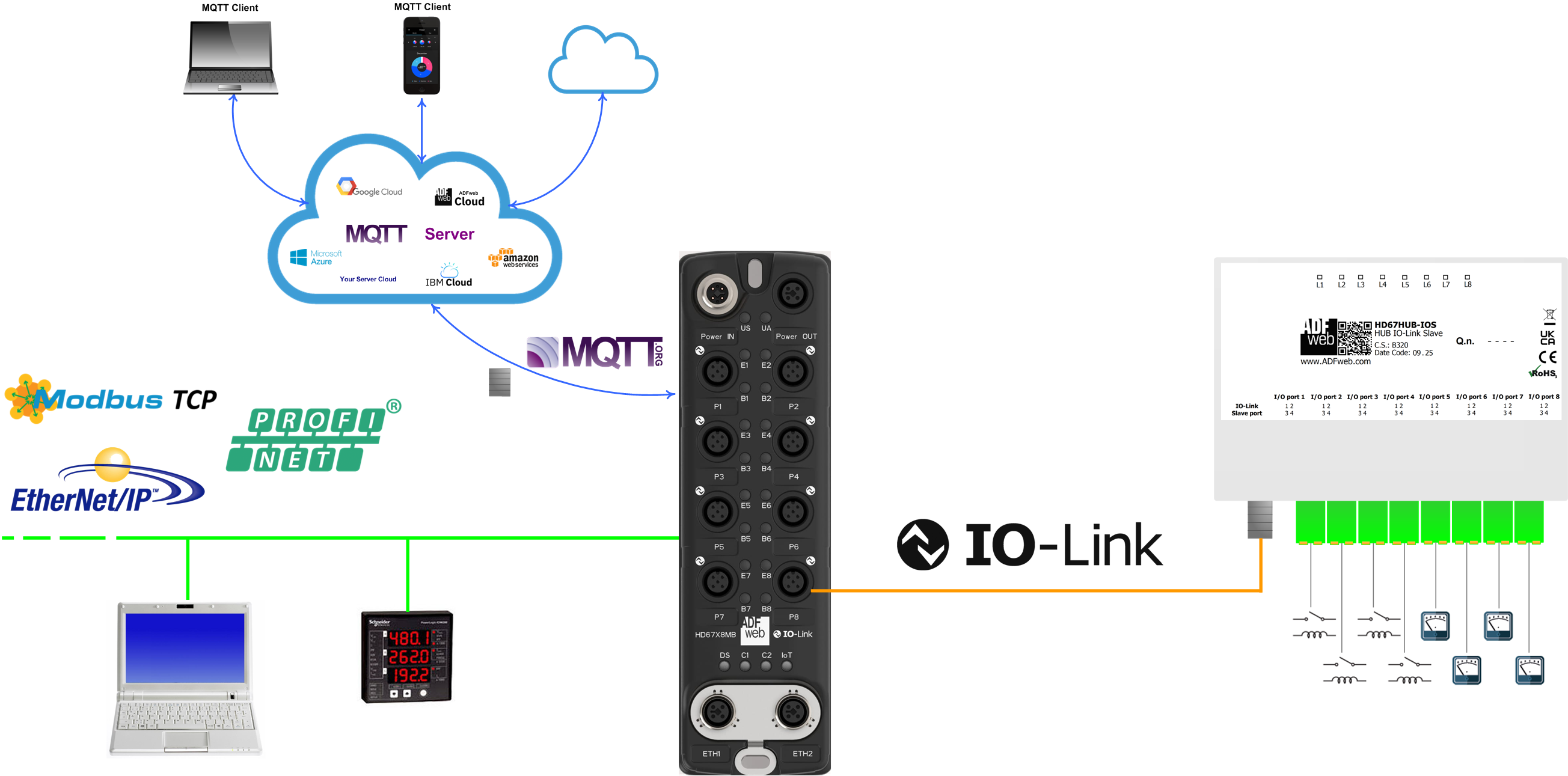

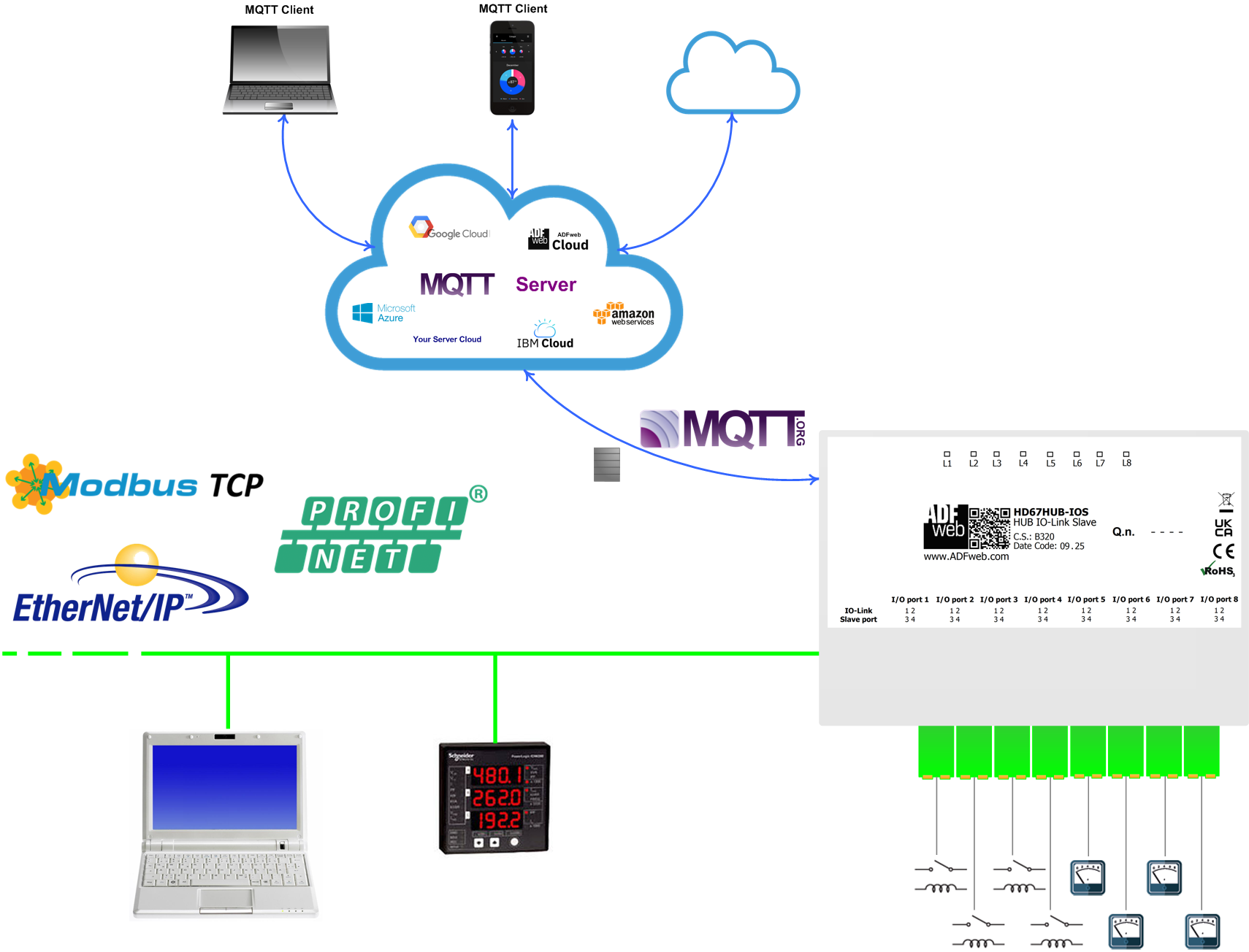

Thanks to its flexible architecture, the HUB allows data acquisition to be accessed both via IO-Link and a multi-protocol interface over Ethernet.
This makes it suitable for various industrial sectors and applications, from machine and plant automation to IIoT solutions for monitoring and predictive maintenance.
HUB & ADFweb.com
ADFweb.com offers advanced hubs, designed to combine maximum versatility with ease of use.
Main features:
Configurable inputs: Up to 8 digital and 8 analog inputs (0–20 mA and -10/+10 V), freely configurable via software based on application needs.
...
Integrated power supply: The I/O connectors include an output power line to directly power the connected sensors.
Multi-protocol Ethernet interface: Simultaneous support for OT (PROFINET, EtherNet/IP, Modbus TCP) and IoT (MQTT, OPC UA) protocols, for seamless integration between traditional automation and IIoT solutions.
Management via IO-Link: Firmware updates via HD67X series IO-Link Master and I/O channel configuration entirely via IODD files.

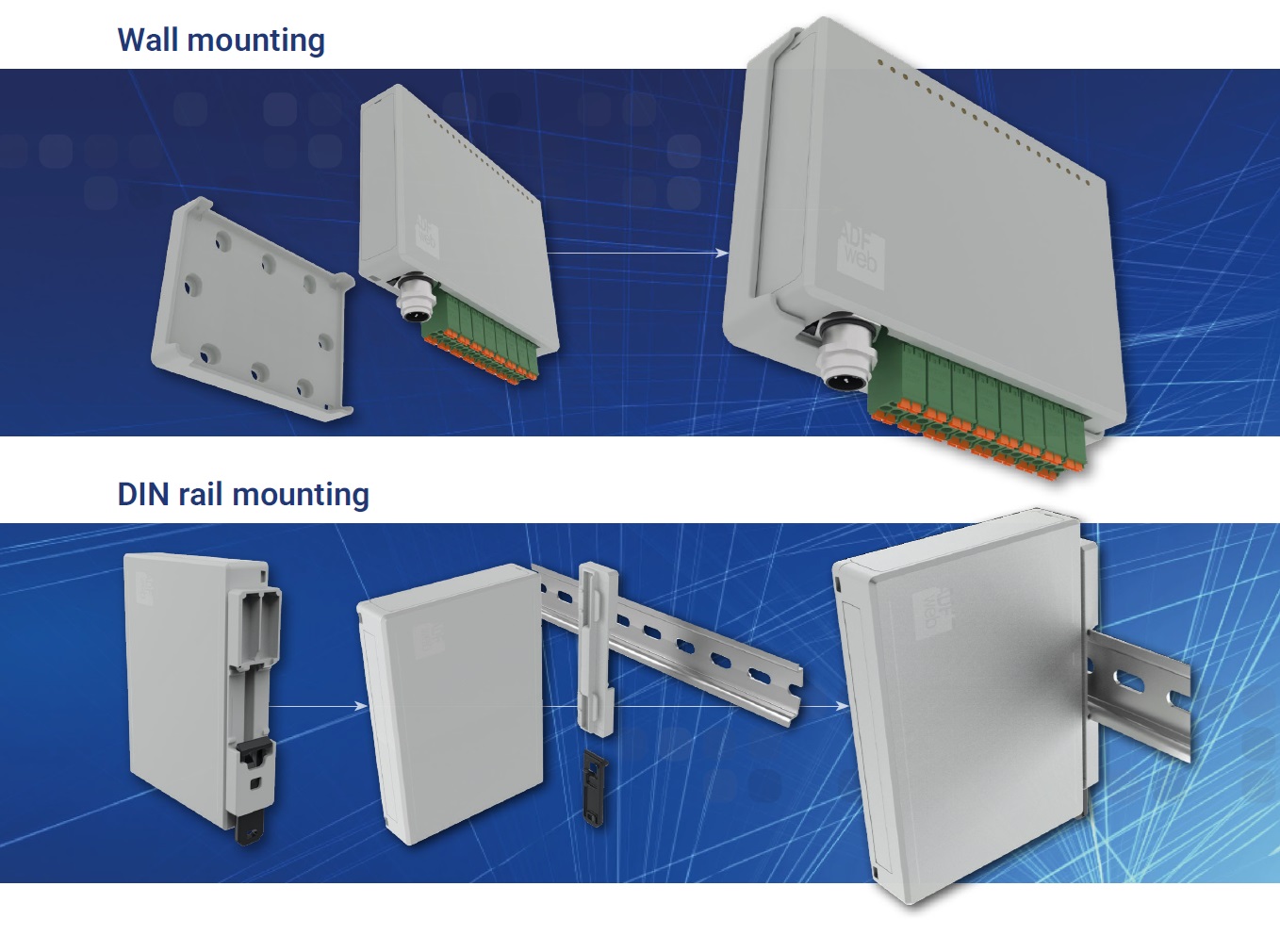

Installation flexibility: DIN rail mounting (horizontal or vertical) or wall/profile mounting with dedicated accessories.
Thanks to these features, ADFweb.com hubs represent a scalable and reliable solution for those who want combine ease of setup, durability, and maximum compatibility with industrial and IoT protocols.
