IO-Link / PROFIBUS Converter

This series of products allows the integration of IO-Link devices into various PROFIBUS and IIoT protocols.

The HD67XXPB and HD67XXMK are IO-Link Master / PROFIBUS Slave Converters that enable the connection of IO-Link devices (such as sensors and actuators) with PROFIBUS, MQTT, and OPC UA.

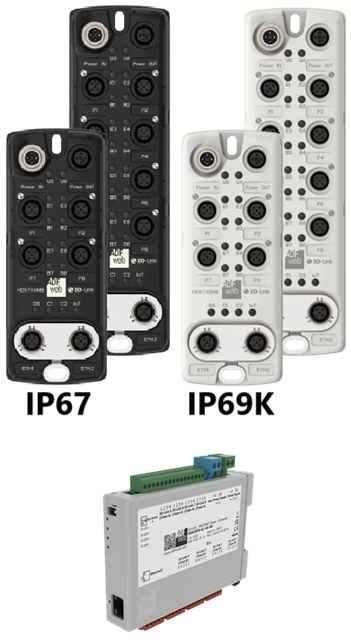

The HD67XXPB, in Carbon Black, is IP67-rated, while the HD67XXPK, in Light Grey, offers advanced protection with an IP69K rating for the harshest environments.

Both versions are equipped with M12 connectors to ensure a robust, structured, and easy-todeploy wiring system. Their sophisticated enclosures are designed to guarantee high performance even in challenging industrial conditions.

The IO-Link ports are configurable as Class A or Class B, offering maximum flexibility to adapt to different application needs.

Connecting to standard IO-Link devices has never been easier.

Order Code	Price info	Details	Description	User manual	Operating Temperature
IO-LINK Master / PROFIBUS Slave Structured Cabling

HD67X4PB		View	IO-Link Master / PROFIBUS Slave for Structured Cabling IP67 - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 4 Programmable ports IO-Link, Color Carbon Black )		-40° to +85°

HD67X4PK		View	IO-Link Master / PROFIBUS Slave for Structured Cabling IP69K - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 4 Programmable ports IO-Link, Color Light Grey )		-40° to +85°
HD67X8PB		View	IO-Link Master / PROFIBUS Slave for Structured Cabling IP67 - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 8 Programmable ports IO-Link, Color Carbon Black)		-40° to +85°
HD67X8PK		View	IO-Link Master / PROFIBUS Slave for Structured Cabling IP69K - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 8 Programmable ports IO-Link, Color Light Grey)		-40° to +85°

Accessories:

Order Code	Description	Details
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC	View
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC	View
AC34131	Patch Cross Cable Cat6 2 Meters	View
