DALI / PROFINET - Converter

Esta serie de productos permite integrar dispositivos DALI & DALI-2 en una red PROFINET.

Estos productos son adecuados para conectar sistemas de iluminación DALI, sensores y dispositivos de campo a sistemas de automatización basados en PROFINET.

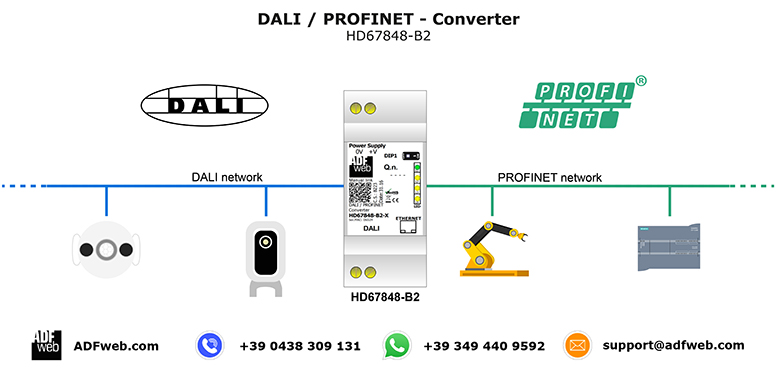

HD67848-B2 - Convertidor DALI / PROFINET.
Este convertidor permite que una red DALI intercambie datos con una red PROFINET, como un PLC Siemens o un sistema de supervisión. Es adecuado para integrar dispositivos DALI en aplicaciones de automatización PROFINET.

Este convertidor se configura mediante software a través de una aplicación de Windows llamada DALI Console:

Se puede descargar con el:
SOFTWARE SW67848 de ADFweb

Funciona con el puerto LAN.
Este software es intuitivo y le permite ver todos los dispositivos DALI conectados al convertidor, los Groups y Scenes configurados, y establecer y gestionar todos sus parámetros.

Order Code	Price info	Details	Description	User manual	Operating Temperature
DALI / PROFINET series
HD67848-B2		View	DALI / PROFINET - Converter (Housing type: B, Terminal Blocks Connectors )		-40°C to +85°C

Accessories:

Order Code	Description	Details
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC	View
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC	View
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC	View
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC	View
AC34131	Patch Cross Cable Cat6 2 Meters	View
