IO-Link / Multi Protocol - Converter
IO-Link / MQTT - Converter

This series of products allows the integration of IO-Link devices into various industrial Ethernet and IIoT protocols.

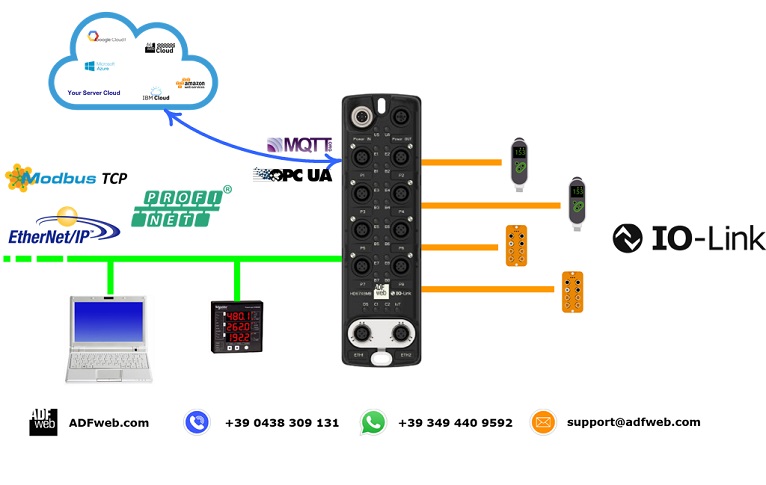

The HD67X8MB and HD67X8MK are IO-Link Master / Multi-Protocol Converters that enable the connection of IO-Link devices (such as sensors and actuators)
with configurable protocols via software, including PROFINET, EtherNet/IP, Modbus TCP, MQTT, and OPC UA.

The HD67X8MB, in Carbon Black, is IP67-rated, while the HD67X8MK, in Light Grey, offers advanced protection with an IP69K rating for the harshest environments.

Both versions are equipped with M12 connectors to ensure a robust, structured, and easy-to- deploy wiring system. Their sophisticated enclosures are designed to guarantee high performance even in challenging industrial conditions.

The IO-Link ports are configurable as Class A or Class B, offering maximum flexibility to adapt to different application needs.

Thanks to their multi-protocol capability and flexible configuration, these converters simplify inventory management: a single order code can support multiple configurations.

Connecting to standard IO-Link devices has never been easier.

The HD67873-A1 is a IO-Link Master / MQTT Converter so you can connect some IO-Link Slaves (like Sensors / Actuators) with a MQTTServer in order to exchange informations between the nets.

The converters are available in different configurations and support type A and type B IO-Link communication.

These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.

The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.

For other IO-Link converters..

◀ PREVIOUS

PRICE INFO

NEXT ▶

Order Code	Price info	Details	Description	User manual	Operating Temperature
IO-Link Master / Multi Protocol Structured Cabling
HD67X8MB		View	IO-Link Master / Multi Protocol for Structured Cabling IP67 - Converter (PROFINET, EtherNetIP, Modbus TCP, MQTT, OPC UA, M12 Connectors, 8 Programmable ports IO-Link, Color Carbon Black )		-40° to +85°
HD67X8MK		View	IO-Link Master / Multi Protocol for Structured Cabling IP69K - Converter (PROFINET, EtherNetIP, Modbus TCP, MQTT, OPC UA, M12 Connectors, 8 Programmable ports IO-Link, Color Light Grey )		-40° to +85°
IO-Link / MQTT
HD67873-A1-2A		View	IO-Link Master / MQTT - Converter ( Housing type: A, Terminal Blocks Connectors, 2xIO-Link ports: A )		-40° to +85°
HD67873-A1-4A		View	IO-Link Master / MQTT - Converter ( Housing type: A, Terminal Blocks Connectors, 4xIO-Link ports: A )		-40° to +85°
HD67873-A1-2B		View	IO-Link Master / MQTT - Converter ( Housing type: A, Terminal Blocks Connectors, 2xIO-Link ports: B )		-40° to +85°
HD67873-A1-4B		View	IO-Link Master / MQTT - Converter ( Housing type: A, Terminal Blocks Connectors, 4xIO-Link ports:B )		-40° to +85°
HD67873-A1-2A-2B		View	IO-Link Master / MQTT - Converter ( Housing type: A, Terminal Blocks Connectors, 2xIO-Link ports: A, 2xIO-Link ports: B )		-40° to +85°
HD67873-A1-4A-4B		View	IO-Link Master / MQTT - Converter ( Housing type: A, Terminal Blocks Connectors, 4xIO-Link ports: A, 4xIO-Link ports: B )		-40° to +85°
IO-Link Slave / MQTT
HD67978-B2-IA		View	IO-Link Slave / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors, IO-Link port Class A )		-40° to +85°
HD67978-B2-IB		View	IO-Link Slave / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors, IO-Link port Class B )		-40° to +85°

Accessories:

Order Code	Description	Details
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC	View
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC	View
AC34131	Patch Cross Cable Cat6 2 Meters	View
