EtherNetIP / HART - Converter

Cette série de produits permet l’intégration d’un système EtherNet/IP avec des dispositifs HART.

Ces produits conviennent à la surveillance et à l’échange de données avec des dispositifs de terrain HART, tels que des capteurs et des transmetteurs, à partir de systèmes d’automatisation basés sur EtherNet/IP.

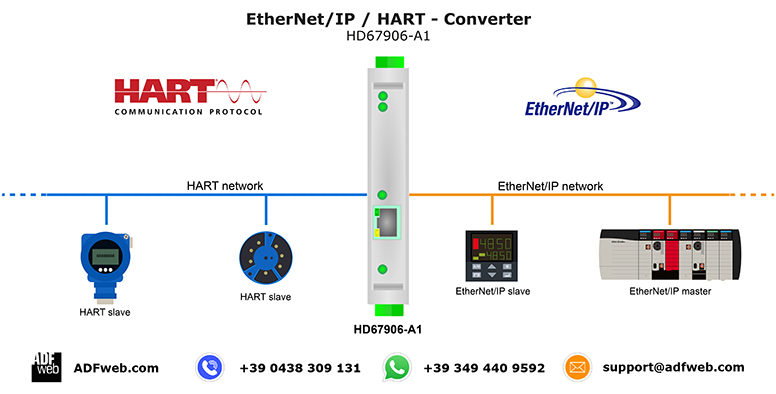

HD67906-A1 - Convertisseur EtherNet/IP / HART.
Ce convertisseur permet de surveiller et de gérer des dispositifs HART à partir d’un réseau EtherNet/IP, tel qu’un PLC Rockwell ou un système de supervision. Il prend en charge la communication HART FSK et peut fonctionner comme un Primary HART Master ou comme un Secondary HART Master.

Du côté HART, le convertisseur peut gérer jusqu’à 15 dispositifs (+1 Secondary Master).

Tous les produits sont faciles à configurer grâce au logiciel dédié gratuit, disponible dans la section Download.

Besoin de plus de détails ou d’aide pour choisir le bon produit pour votre application ?
Notre spécialiste FieldBus est prêt à vous aider : info@adfweb.com.

Order Code	Price info	Details	Description	User manual	Operating Temperature
EtherNetIP / HART
HD67906-A1		View	EtherNetIP / HART Master - Converter (Housing type: A, Terminal Blocks Connectors )		-40°C to +85°C

Accessories:

Order Code	Description	Details
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC	View
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC	View
AC34131	Patch Cross Cable Cat6 2 Meters	View
