IO-Link / EtherCAT - Converter

This series of products allows the integration of IO-Link devices into EtherCAT and various IIoT protocols.

The HD67XXEB and HD67XXEK are IO-Link Master / EtherCAT Slave Converters that enable the connection of IO-Link devices (such as sensors and actuators) with EtherCAT, MQTT, and OPC UA.

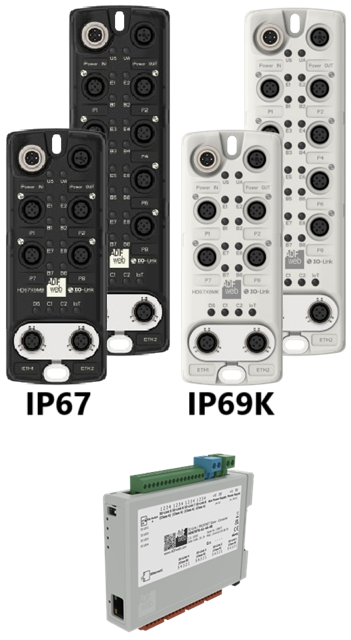

The HD67XXEB, in Carbon Black, is IP67-rated, while the HD67XXEK, in Light Grey, offers advanced protection with an IP69K rating for the harshest environments.

Both versions are equipped with M12 connectors to ensure a robust, structured, and easy-todeploy wiring system. Their sophisticated enclosures are designed to guarantee high performance even in challenging industrial conditions.

The IO-Link ports are configurable as Class A or Class B, offering maximum flexibility to adapt to different application needs.

Connecting to standard IO-Link devices has never been easier.

The HD67879-A1 is a IO-Link Master / EtherCAT Slave Converter so you can connect some IO-Link Slaves (like Sensors / Actuators) with an EtherCAT Master (like a Beckhoff PLC, OMRON PLC etc..) in order to exchange informations between the nets.

The converters are available in different configurations and support type A and type B IO-Link communication.

On EtherCAT side, there are 2 Ethernet ports for IN & OUT connections: they allow Line topology and Ring topology (for easy redundant communication).

Easy and fast integration of the Slave converters inside the Master configuration thanks ESI file, generated by FREE software compositor.

For other EtherCAT converters..

◀ PREVIOUS

PRICE INFO

NEXT ▶

Order Code	Price info	Details	Description	User manual	Operating Temperature
IO-LINK Master / EtherCAT
HD67879-A1-2A		View	IO-Link Master / EtherCAT Slave - Converter ( Housing type: A, Terminal Blocks Connectors, 2xIO-Link ports A )		-40° to +85°
HD67879-A1-4A		View	IO-Link Master / EtherCAT Slave - Converter ( Housing type: A, Terminal Blocks Connectors, 4xIO-Link ports A )		-40° to +85°
HD67879-A1-2B		View	IO-Link Master / EtherCAT Slave - Converter ( Housing type: A, Terminal Blocks Connectors, 2xIO-Link ports B )		-40° to +85°
HD67879-A1-4B		View	IO-Link Master / EtherCAT Slave - Converter ( Housing type: A, Terminal Blocks Connectors, 4xIO-Link ports B )		-40° to +85°
IO-Link Slave / EtherCAT
HD67971-B2-IA		View	IO-Link Slave / EtherCAT Slave - Converter ( Housing type: B, Terminal Blocks Connectors, IO-Link port Class A )		-40° to +85°
HD67971-B2-IB		View	IO-Link Slave / EtherCAT Slave - Converter ( Housing type: B, Terminal Blocks Connectors, IO-Link port Class B )		-40° to +85°
IO-LINK Master / EtherCAT Slave Structured Cabling

HD67X4EB		View	IO-Link Master / EtherCAT Slave for Structured Cabling IP67 - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 4 Programmable ports IO-Link, Color CaEBon Black )		-40° to +85°

HD67X4EK		View	IO-Link Master / EtherCAT Slave for Structured Cabling IP69K - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 4 Programmable ports IO-Link, Color Light Grey )		-40° to +85°
HD67X8EB		View	IO-Link Master / EtherCAT Slave for Structured Cabling IP67 - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 8 Programmable ports IO-Link, Color CaEBon Black)		-40° to +85°
HD67X8EK		View	IO-Link Master / EtherCAT Slave for Structured Cabling IP69K - Converter (IIoT port MQTT, OPC UA, M12 Connectors, 8 Programmable ports IO-Link, Color Light Grey)		-40° to +85°

Accessories:

Order Code	Description	Details
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC	View
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC	View
AC34131	Patch Cross Cable Cat6 2 Meters	View
